Product Specification

Brand Name: ALITER

Item Type: Speaker Accessories Kits

Model Number: OTE0902

Package: No

Description:
Description:

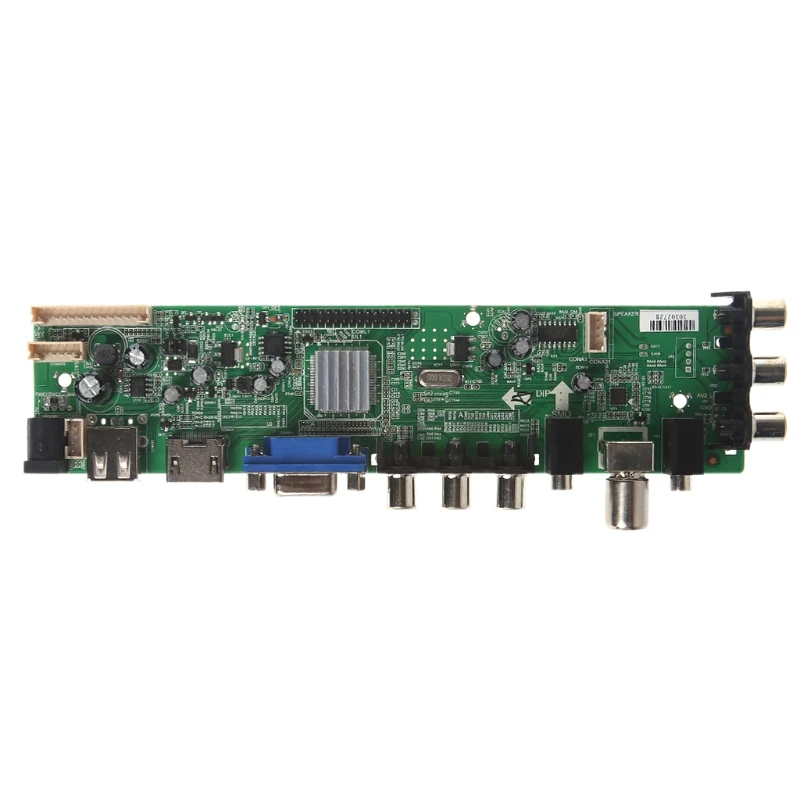

This model is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.
Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip.
Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.

Features:
100% brand new and high quality.
Support Digital Signal and Russian
Controller chip: LUA63A82
TV tuner chip: Rafael R842
OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video)
Power Input: DC 12V 4A
Chip Audio:
Audio output power: 2x8W
Consumption: operating mode -> = 6W
simple - <0.3W
Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)
HDMI
VGA
AV IN
YPbPr
Additional inputs outputs: audio mini jack 3.5mm USB
USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG.
Doesn't support audio AC3 720P, If the sound doesn't play via USB, You can recode the audio track.
Supported resolutions:
1024 X 600 6 bit 1 channel
1024 X 768 6-bit 2 channel
1024 X 768 8-bit 2 channel
1024 X 768 6-bit 1 channel
1024 X 768 8-bit 1 channel
1280 X 768 8-bit 1 channel
1280 X 800 6-bit 1 channel
1280 X 1024 8-bit 2 channel
1366 X 768 8-bit 2 channel
1366 X 768 8-bit 1 channel
1400 X 1050 6 bit 2 channel
1440 X 900 8 bit 2 channel
1600 X 900 8-bit 2 channel
1600 X 1200 6-bit 2 channel
1680 X 1050 8-bit 2 channel
1920 X 1080 8-bit 2 channel
1920 X 1080 6-bit 2 channel

Specifications:
Material: Plastic + Metal
Color: shown as pictures
Remote Control Size: 17.5times4.5times1.5cm/6.89times1.77times0.59in (Approx.)
Remote Control battery type: 2* AAA battery (Not included)
Quantity: 1 Set

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes: (No retail package)
1 X Board
1 X Remote Control
1 X IR
1 X 7 Key Switch
1 X 4 Lamp Inverter
1 X Dupont Line
1 X 2 Ch 8-bit 30 pins LVDS Cable
